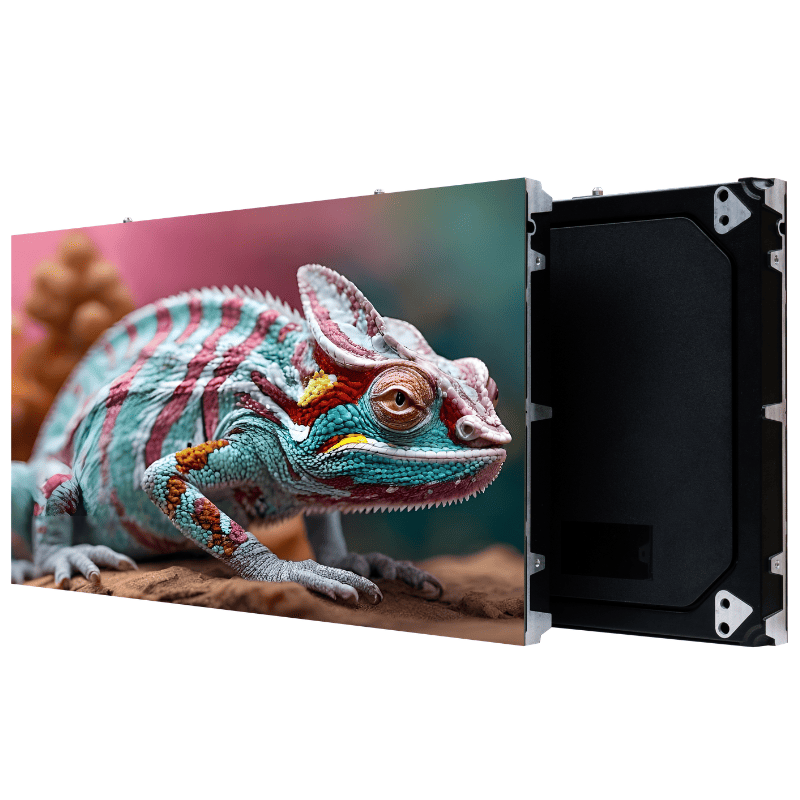

Indoor Fixed LED Display Solution
Dimension: 600*337.5mm
Cabinet Pixel Pitch: 0.78mm, 0.9375mm, 1.25mm, 1.5625mm
Applications: High-end conference, Command center, Cinema, TV studio, etc.
Note: final specs are adjustable according to project requirements
Key Features

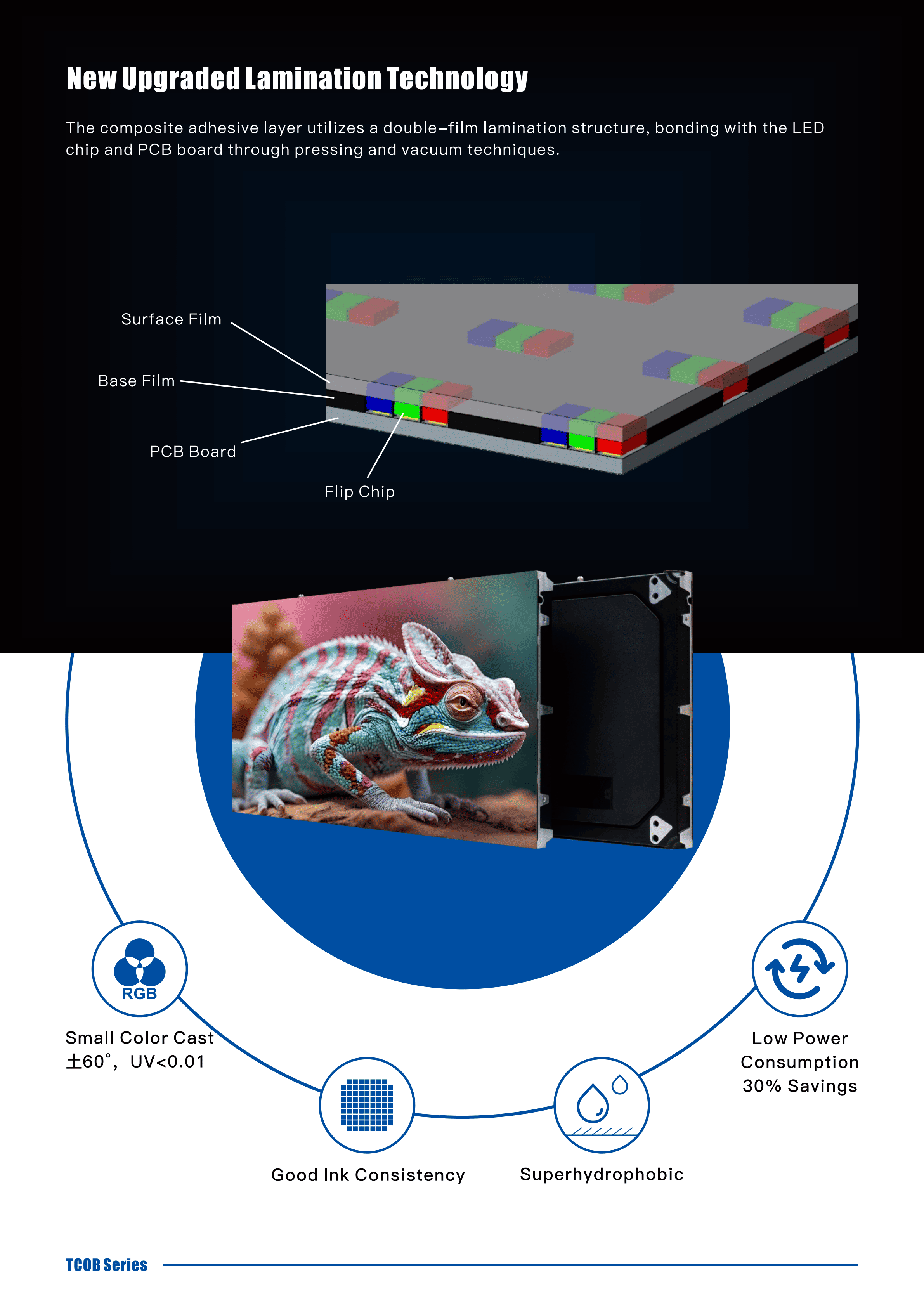

Upgraded lamination COB technology
Native 16:9 golden ratio

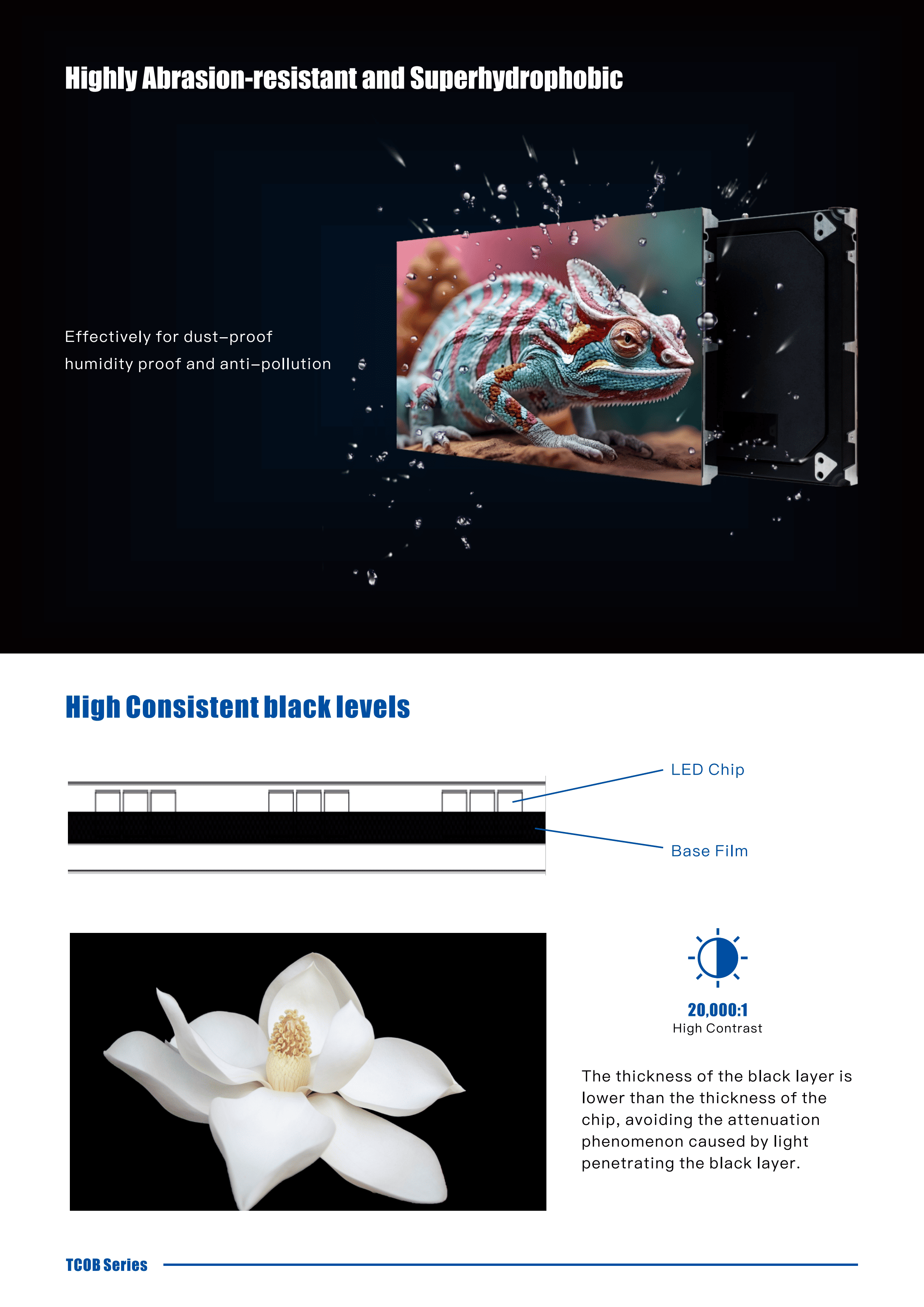

Contrast ratio：8000:1 ～ 20000:1
Low power consumption with up to 30% energy savings
Order(MOQ):
1
| Parameter | T COB 0.78 | T COB 0.93 | T COB 1.25 | T COB 1.56 |
|---|---|---|---|---|
| Pixel Pitch | 0.78 mm | 0.93 mm | 1.25 mm | 1.56 mm |
| Dimension | 150 mm × 168.75 mm | |||
| Resolution | 192 × 216 pixels | 160 × 180 pixels | 120 × 135 pixels | 96 × 108 pixels |
| Module Connection | Hot Swap (Single Connector) | |||
| Material | Plastic | |||
| Weight | 0.55 ± 0.05 kgs | |||
| Parameter | T COB 0.78 | T COB 0.93 | T COB 1.25 | T COB 1.56 |
|---|---|---|---|---|
| Dimension | 0.6 m × 0.3375 m | |||
| Resolution | 768 × 432 pixels | 640 × 360 pixels | 480 × 270 pixels | 384 × 216 pixels |
| Cooling System | Fanless | |||
| Material | Aluminum (Die-Casting) | |||
| Weight | 9 kgs | |||
| Parameter | T COB 0.78 | T COB 0.93 | T COB 1.25 | T COB 1.56 |
|---|---|---|---|---|
| Pixel Density | 1,638,400 dots/m² | 1,137,777 dots/m² | 640,000 dots/m² | 409,600 dots/m² |
| Circuit Design | Common Anode/Common Cathode | |||
| Brightness | Typ 600 nits (cd/m²) | |||
| Color Temperature | 3000K - 10000K | |||
| Contrast Ratio | 8000:1 ~ 20000:1 | |||
| Viewing Angle | Horizontal ≤ 160°, Vertical ≤ 160° | |||
| Refresh Rate | 3840 Hz ~ 7680 Hz | |||
| Gray Scale | 12- bit ~ 16- bit | |||
| LED Lifespan | 100,000 hrs | |||
| Input Voltage | 110V 220V or 110~220V | |||
| Power Consumption/Cabinet | ≤ 55W | ≤ 67W | ≤ 53W | ≤ 50W |
| Power Consumption/m² | ≤ 275W/m² (at 600nits) | ≤ 335W/m² (at 600nits) | ≤ 265W/m² (at 600nits) | ≤ 250W/m² (at 600nits) |
| Maintenance Type | 100% front access; back access optional | |||
| Ingress Protection (IP) | IP65/IP50 | |||
| Working Humidity | 10% RH - 85% RH | |||
| Working Temperature | -20°C to +40°C | |||
| Flash Calibration Storage | Supported | |||
| Redundancy/Backup | Dual Power (Optional) | |||
| Control System | NovaStar & Colorlight | |||
| Certifications | Complies with 3C, EMC CLASS-A, CE, RoHS, FCC, ETL, CB, Energy Saving Standards | |||

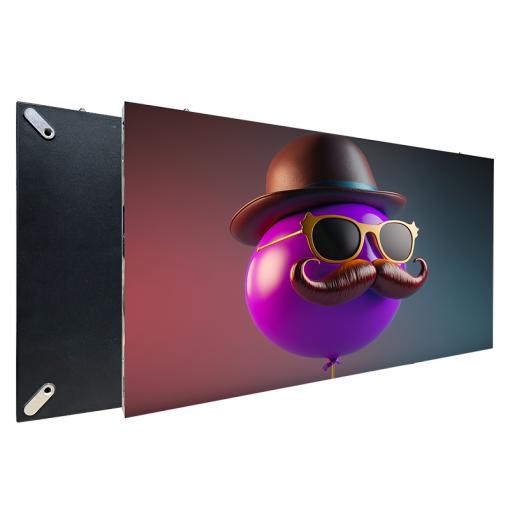

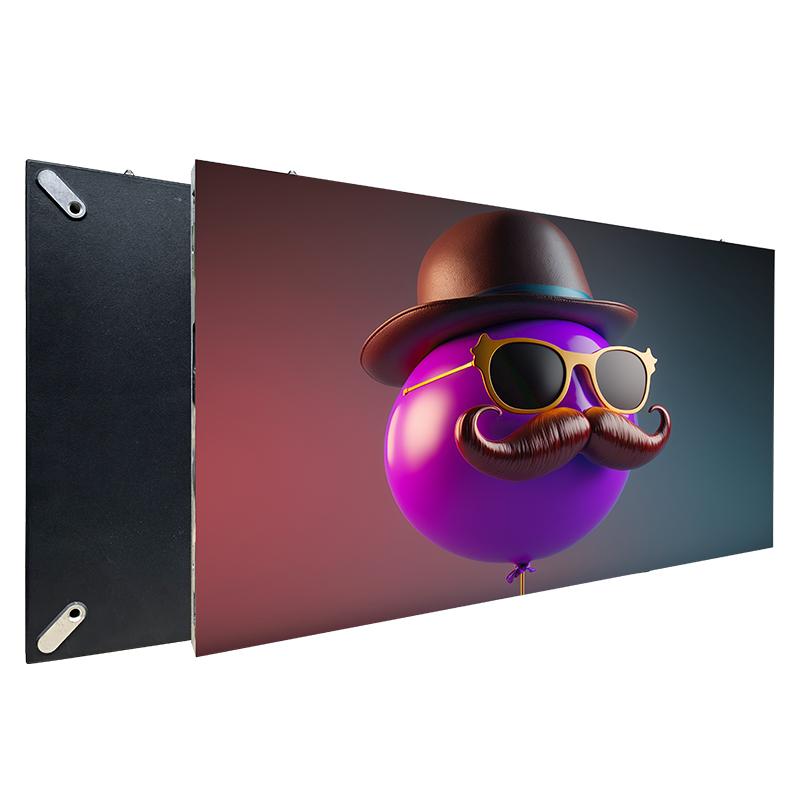

Indoor LED Display Screen Solution Dimension: 500*500*61.3mm, 500*750*61.3mm, 500*1000*61.3mm Pixel Pitch: 1.9mm, 2.6mm, 2.9mm, 3.9mm, 4.8mm Applications: Conference room, control center, shopping mall, etc. Key Features:● High brightness for window led display ● Aluminium lightweight cabinet● Curve screen achievable● Total front & rear service● Variety installation method: mounted,rigging, frame etc.

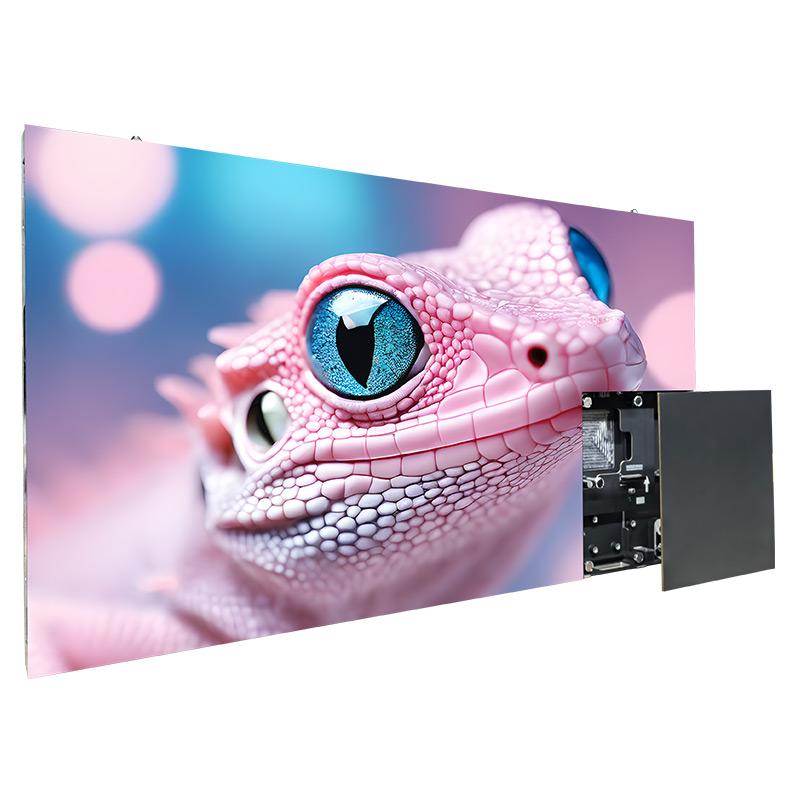

Indoor LED Display Screen Solution Dimension:1000*500*33mm, 500*500*33mm, 250*500*33mm, 1000*250*33mm, 500*250*33mm, 250*250*33mm Pixel Pitch: 1.95mm, 2.5mm,2.6mm Applications: Controlling center, Conference room, Shopping malls, Showrooms, etc. Key Features: ● Totally magnetic design.● Multiple mounting options, including wall mounting, ground stacking, truss rigging. ● The most advanced technology.● Seamless splicing, high flatness. Supports creative stitching.
